Basic Info.
Model NO.
customized
Platform out Diameter
160 1200 400mm
Color
G09 Green
Core Lamination
400mm
Color 1
Zinc Plating
Trolley Load
5 Ton
Power Roller Speed
7m/ Minute
Power Roller Quantity
1 Set
Roller Outsize
2000 X 1200mm
Transport Package
Standard Packing
Specification
1600× 1200× 400mm
Trademark
Senerge
Origin
Zhejiang
Production Capacity
30 Sets/Month
Product Description
Our Transformer Core Stacking Table Line Raceway Type Worktable It enables stacking of small distribution transformer cores of about 100 kVA but also power transformer cores with 5 legs of above 1000 MVA.
1.Component parameters

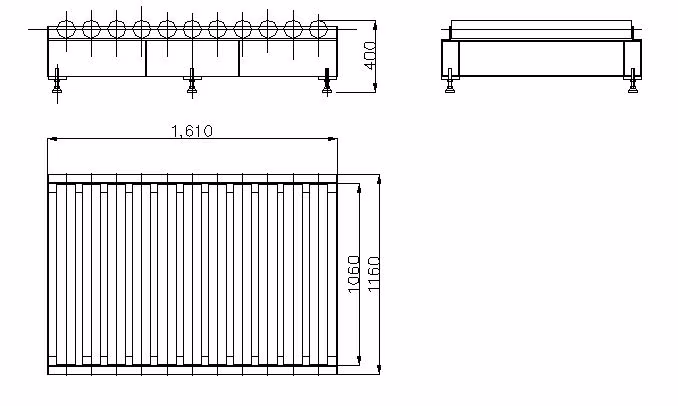

1.1 Raceway Type Worktable
Raceway power: Automatic
Raceway speed: 7m/ minute
Effective load: ≤4 ton
Single roller load: ≤300kg
Platform out diameter:1600×1200×400mm
Color: G09 Green
1.2 Mobile stacking table
Effective load: ≤4 ton
Platform out diameter: 1600×1200(1800)×400mm(When the rod extends out 1800)
Core column Regulating range: A-B,B-C(Mo):150-710mm
Core Height: Max1600mm(Bottom yoke center to upper yoke center)
Core lamination:≤400mm
Color: zinc plating
Reference drawing

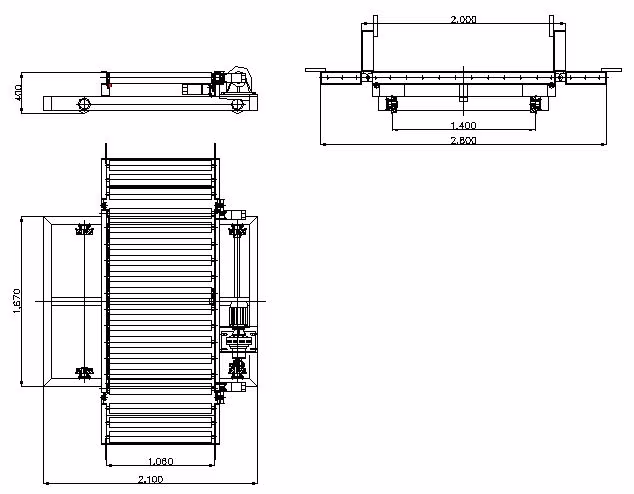

2.3 Electric transport trolley
Trolley load: 5 ton
Working speed: frequency control ≤30m/ minute
Power roller speed: 7m/ minute
Power roller quantity: 1 set
Outsize : 2100 X 2000 X 400mm(Roll face to ground)
Roller outsize: 2000 X 1200mm
Power: AC24V 3KW
